DAKS-PNA

To the 'Special Solutions' overview

Personal Emergency Signal System in accordance with DGUV Rule 112-139

Personal Emergency Signal Systems (German abbreviation: PNA) in keeping with DIN V VDE V 0825-1 are systems that activate and transmit both deliberate and automatic distress signals in emergency situations. They ensure the protection of persons who work alone (so-called "lone workers") in hazardous workplaces, and they do so in full conformity with the German DGUV Rule 112-139.

Occupational safety is subject to strict legal regulations. In accordance with the DGUV (German Social Accident Insurance), people working alone out of earshot and sight of others must be protected by a Personal Emergency Signal System for certain hazardous activities.

DAKS-PNA is certified by the German Social Accident Insurance (DGUV) as such a Personal Emergency Signal System (PNA for short) in accordance with DIN VDE V 0825-1. The system enables the triggering, transmission and location of deliberate and automatic alarms and is used to protect people working alone in hazardous situations in accordance with DGUV regulations.

The official entries can be retrieved in the certificate database of the DGUV using the search term "Personen-Notsignal-Anlage".

Questions about DAKS-PNA

Legal specifications

Excerpt from DGUV Regulation 1 (“Principles of Prevention”)

§8 – Hazardous work

(2) If hazardous work is carried out by one person alone, the employer must ensure that appropriate technical or organizational measures are taken to protect the person in addition to the general protective measures.

Excerpt from DGUV Rule 100-001

[...] Technical measures include, for example, the use of suitable personal emergency signal systems. Further information can be found in DGUV Rule 112-139 “Use of personal emergency signal systems.” [...]

Solution option I
Solution option II

DAKS-PNA with Mitel Unify or Gigaset components

Alarm server = Emergency Call Response Center as defined by the DGUV rule	DAKSpro
Telephone/DECT system	Mitel Unify OpenScape 4000 (telephone system) incl. OpenScape Cordless E (DECT) Mitel Unify OpenScape Cordless IP V2 (OSCIP V2) * Gigaset N870 IP PRO * * These options can be connected to any existing telephone system or used completely independently.
DECT mobile devices = Personal Emergency Signal Device with Voice Function as defined by the DGUV rule	Mitel Unify OpenStage M3 Plus or M3 Ex Plus * * Device can be used in both Mitel Unify and Gigaset infrastructures.

Product-related info material

Product Info 'DAKS-PNA P8M3'

Load document

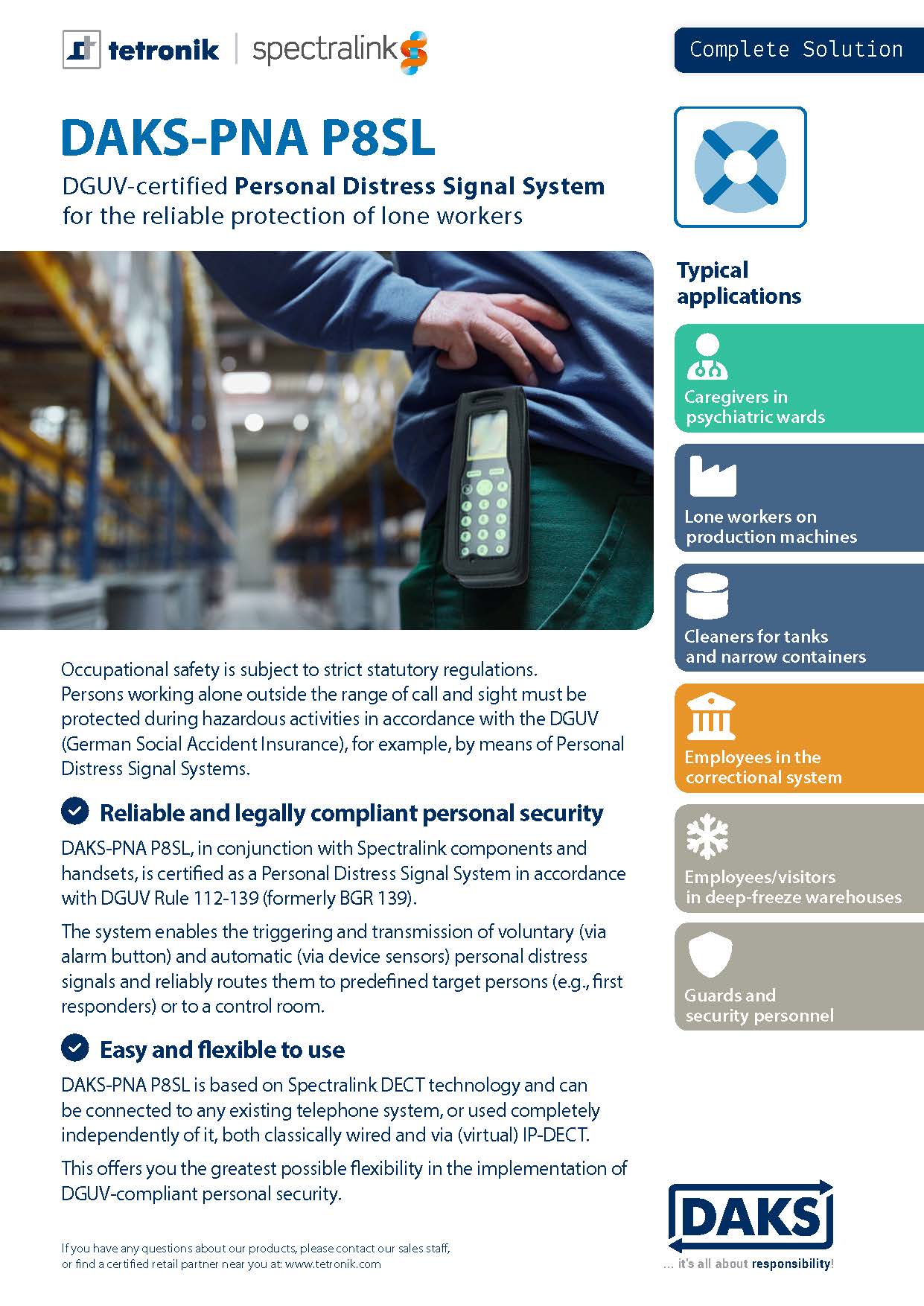

DAKS-PNA with Spectralink components

Alarm server = Emergency Call Response Center as defined by the DGUV rule	DAKSpro
DECT system	Spectralink DECT Server 8000 Spectralink IP-DECT Server 6500 Spectralink VIP-DECT Server ONE
DECT mobile devices = Personal Emergency Signal Device with Voice Function as defined by the DGUV Rule	Spectralink 7642 and S37
